Rebar

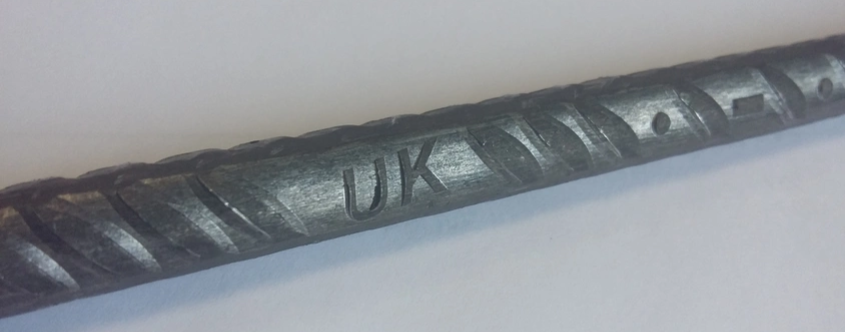

Reinforcing Steel Bar

High Yield Reinforcing bar BS4449:2005 in diameters 10mm to 40mm. All fabricated rebar conforms to BS8666:2005. 8mm and 50mm are non preferred sizes that may be available on special order.

Reinforcement Bar Technical Data

Properties of high yield bars



Size (mm)10121620253240
Dim (max O/A mm) 12 14 19 23 29 37 46
Mass (kg per m) 0.616 0.888 1.579 2.466 3.854 6.313 9.864
Metres per tonne 1623 1126 633 405 259 158 101



Radius Bending

Reinforcement to be formed to a radius exceeding that specified in the table below shall be supplied straight. The required curvature may be obtained during placing. For shapes with straight and curved lengths (e.g. shape codes 13 and 33) the largest practical radius for the production of a continuous curve is 200mm, and for larger radii the curve may be produced by a series of short straight sections.



Size (mm)10121620253240
Radius 3.50 4.25 7.50 14.00 30.00 43.00 58.00



Cutting and Bending Tolerances

The tolerances for cutting and/or bending dimensions shall be in accordance with the table below and shall be taken into account when completing the schedule.



Cutting and Bending Tolerances (mm)
Straight lengths (including reinforcement for subsequent bending)  +25-25
Bending   <1000mm +5-5
>1000mm to <2000mm +5-10
>2000mm +5-25



Table of minimum dimensions

Nominal
Size
Minimum radius
of scheduling
Minimum diameter
for bending former
Minimum end projection (P)
      General
(min. 5d straight)
Links where bends <150°
(min. 10d straight)
6* 12 24 110 110
8* 16 32 115 115
10 20 40 120 130
12 24 48 125 160
16 32 64 130 210
20 70 140 190 290
25 87 175 240 365
32 112 224 305 465
40 140 280 380 580
50* 175 350 475 725
*6mm, 8mm & 50mm are non-preferred sizes available to special order
